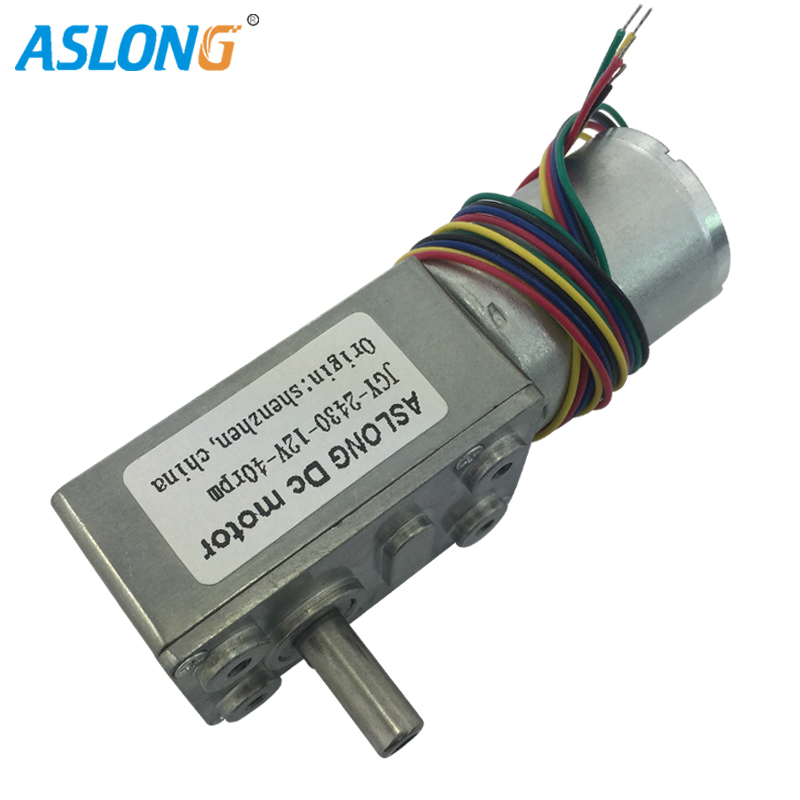

JGY-2430
JGY-2430
￥0.00
- 产品详情
- 产品参数
| 型號 | 電壓 | 空載 | 最大效率點 | 堵轉 | 減速器 | |||||||
| Voltage | Noload | At Max.Effciency | Stall | Speedreducer | ||||||||
| 使用範圍 | 額定值 | 轉速 | 電流 | 轉速 | 電流 | 扭矩 | 功率 | 扭矩 | 電流 | 減速比 | 長度 | |
| Model | Using | The | Speed | Current | Speed | Current | Torque | Power | Torque | Current | Redction | (L)Size |
| Rangge | Rated | r/min | ma | r/min | ma | kg.cm | W | kg.cm | A | Ratio | mm | |
| 12-24V | 12V | 160 | 90 | 128 | 200 | 1 | 4 | 5 | 0.8 | 37.3 | 46 | |
| 12-24V | 12V | 40 | 90 | 32 | 200 | 4 | 4 | 16 | 0.8 | 150 | 46 | |
| 12-24V | 12V | 24 | 9 | 19 | 200 | 6 | 4 | 24 | 0.8 | 250 | 46 | |
| 12-24V | 12V | 18 | 90 | 15 | 200 | 7 | 4 | 30 | 0.8 | 324 | 46 | |
| 12-24V | 12V | 10 | 90 | 8 | 180 | 13 | 4 | 60 | 0.8 | 600 | 46 | |
| 12-24V | 12V | 6 | 90 | 5 | 180 | 20 | 4 | 禁止 | 0.8 | 972 | 46 | |
| 12-24V | 12V | 3 | 90 | 2 | 180 | 35 | 4 | 禁止 | 0.8 | 1700 | 46 | |
| 12-24V | 12V | 2 | 90 | 1.5 | 180 | 60 | 4 | 禁止 | 0.8 | 2900 | 46 | |
编号
Gear motor
价格
￥0.00
